Product Description

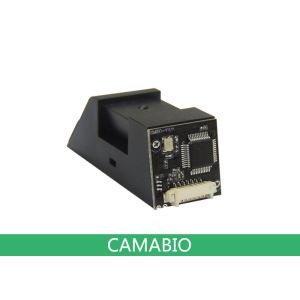

CAMA-SM50 Biometric Fingerprint Sensor Module is an ideal OEM
Optical Fingerprint Sensor Module designed for biometric security
solution developers and manufacturers. It can be to integrate into
various applications such as Access Control System, Time
Attendance, Safe Box and Door Lock and so on.
Powered by world best, multi-award winning CAMA fingerprint
algorithm, CAMA-SM50 biometric fingerprint sensor module offers
powerful identification performance .
Product Features
# 500 fingerprints capacity
# 360 degree identification
# Auto-learning function
# Touch sense activation
# Fast identification speed
# Support 1:1: and 1:N verification
# FAR<0.001% FAR<0.1%
# Anti-scratch prism (ZF1 glass)
Product Specifications
| Item | Description |
| Fingerprint Sensor | CAMA Optical Fingerprint Sensor |
| Scan Area | 17.9mm x 20.6mm |
| Fingeprint Image | 242 x 266 ( Pixel) |
| Image resolution | 500 DPI |
| Fingerprint Template | 496 bytes |
| Communication Interface | UART ( 3.3V TTL) |
| FRR | <0.1% |
| FAR | <0.001% |
| Identification Speed | 1:1 <0.5s; 1:N(500 fingerprints) |
| Fingerprint Capacity | 500 Fingerprints |
| Work Current | < 150mA |
| Standby Current | < 20μA |
| Power Supply | DC 3.3V |
| Working Temperature | -10℃ to 60℃ |
| Working Temperature | 20% to 80% |
Product Size
Connector And Signal Description
| Pin No. | Signal name | Signal Description |
| PIN 1 | Touch Power 3.3V | Touch sense function need to supply power separately (It is
better the power can be controlled). Power: DC3.3V± 0.1V
Current:1.5uA to 2.5uA |
| PIN 2 | Finger Detect | Output high level when detected finger, and output low level
once finger left |
| PIN 3 | UART-TX | Module Transmit Output,3.3V TTL Logic |
| PIN 4 | UART-RX | Module Receive Input,3.3V TTL Logic |
| PIN 5 | GND | GND |
| PIN 6 | VIN | DC Input, Range of Voltage is 3.3V±10% |
| PIN 7 | FP Reset | Reset at low level (reset time>100ms), Work at high level. After
Reset, it will cost about 350-400ms for system initializing and
programs loading; Only after that the module can communicate
with MCU by UART |
Technical Support
To support you electronic engineers to do developing works, CAMABIO
will provide you following materials after you bought the product
1. User Manual of CAMA-SM50 ( Command Protocols Included)
2. DEMO Software For Testing Purpose
3. Sample Code For Micro controller Unit
If you have any technical questions before you buy CAMA-SM50
biometric fingerprint sensor module, you can contact camasales01@camabio.com for support.
Where You Can Use It?
CAMA-SM50 Biometric fingerprint sensor module can be embedded into
following products
1. Fingerprint door lock system
2. Biometric access control system
3. Biometric time attendance system
4. Fingerprint car starter
5. Fingerprint safe box lock
...
....
